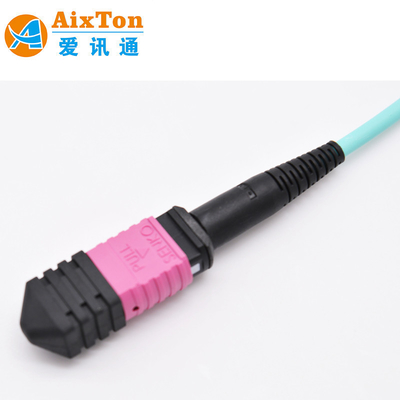

OM3 50/125μm Fiber Mode 24-Core Pre-Terminated MTP/MPO Round Fiber Cable for Data Centers in Vietnam

  • OM3 50/125μm Fiber Mode 24-Core Pre-Terminated MTP/MPO Round Fiber Cable for Data Centers in Vietnam
  • OM3 50/125μm Fiber Mode 24-Core Pre-Terminated MTP/MPO Round Fiber Cable for Data Centers in Vietnam
Lugar de origem porcelana
Marca Aixton
Certificação ISO9001,CE,FCC,ROHS
Número do modelo AXT-MPO-8
Quantidade de ordem mínima 50 PCS
Detalhes da embalagem saco poli ou pacote do OEM
Tempo de entrega 10-15 dias
Termos de pagamento L/C, T/T, Western Union
Habilidade da fonte 100000pcs cada mês

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nome do Produto Cable de tronco multimodo (MTP) Modo de fibra OM3 50/125μm
Distância Ethernet 10G 300 m a 850 nm Diâmetro do tronco 3.0mm-17.3mm
Comprimento de onda 850/1300nm Tipo polonês UPC para UPC
Conectores padrão ≤ 0,2 dB Conectores padrão RL ≥30dB
Destacar

MTP/MPO Round Fiber Cable

,

Data Centers Round Fiber Cable

,

OM3 Round Fiber Cable
Descrição de produto

OM3 50/125μm Fiber Mode 24-Core Pre-Terminated MTP/MPO Round Fiber Cable for Data Centers in Vietnam 0

                                                             OM3 50/125μm Fiber Mode 24-Core Pre-Terminated MTP/MPO Round Fiber Cable for Data Centers in Vietnam 1

OM3 24 Core MPO Male - LC Fiber 0.9mm Fan Out Patch Cables MTP Patch Cable Assemblies



MTP/MPO Trunk Cables

MTP/MPO trunk multifiber cable assemblies facilitate rapid deployment of high density backbone

cabling in data centers and other high fiber environments, reducing network installation or

reconfiguration time and cost. They are used to interconnect cassettes, panels or ruggedized

MTP/MPO fanouts, spanning MD A, HDA and EDA zones.



Standards Compliance

RoHS, CE (EN 50575 CPR), ISO9001 and WEEE Compliant

EIA/TIA, Telecocordia GR-326-CORE Standards

IEC61754-7

TIA 605-4 (FOCIS 5)

YD/T1272.5



Features

  1. 100% pre-terminated and tested in factory to ensure transfer performance
  2. Rapid configuration and networking, reduce installation time
  3. Supports 40G and 100G network applications
  4. Jacket material: LSZH, OFNR, OFNP available
  5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available



Model SM MM
Connector A:MPO/MTP
Connector Fiber Count 8,12,24,48 Core
Polish PC,APC PC
Insertion Loss Standard ≤0.70dB ≤0.50dB
Elite Low Loss ≤0.35dB ≤0.30dB
Return Loss PC≥50dB,APC≥60dB ≥30dB
Durability(500 Matings) ≤0.2dB
Test Wavelength 1310/1550nm 850/1300nm
Connector B:LC,LC Uniboot,SC,FC,ST
Polish PC,APC PC
Insertion Loss ≤0.2dB ≤0.2dB
Return Loss PC≥50dB,APC≥60dB ≥35dB
Durability(500 Matings) ≤0.2dB

Product Details

OM3 50/125μm Fiber Mode 24-Core Pre-Terminated MTP/MPO Round Fiber Cable for Data Centers in Vietnam 2

OM3 50/125μm Fiber Mode 24-Core Pre-Terminated MTP/MPO Round Fiber Cable for Data Centers in Vietnam 3

OM3 50/125μm Fiber Mode 24-Core Pre-Terminated MTP/MPO Round Fiber Cable for Data Centers in Vietnam 4

OM3 50/125μm Fiber Mode 24-Core Pre-Terminated MTP/MPO Round Fiber Cable for Data Centers in Vietnam 5





FAQ

OM3 50/125μm Fiber Mode 24-Core Pre-Terminated MTP/MPO Round Fiber Cable for Data Centers in Vietnam 6



Q1:What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of

products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than

that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores,

Enough Meters, High Quality, High Performance". Providing our customers with higher quality

products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the

logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support

long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
